Advanced Chipset¶

This page allows you to set advanced parameters for the Custom Chipset.

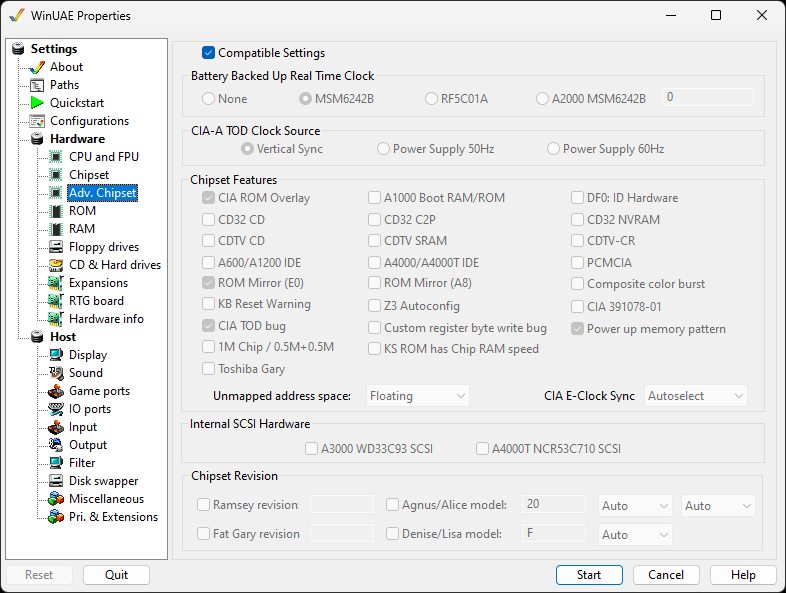

WinUAE - Adv. Chipset

Compatible Settings - removing the check will enable changing options on this page. It should be left checked, as the settings are for advanced users.

Battery Backed Up Real Time Clock¶

Configures the clock type used in the Amiga or a custom clock. The RF5C01A is used in the A3000 and A4000, the MSM6242B in most other models and clock expansions.

CIA-A TOD Clock Source¶

These options allow changing the TOD (Time Of Day) clock source for CIA-A (Complex Interface Adapter A) chip.
The Amiga 500 used the Vertical Sync as signal for the real time clock, which is not precise. It is the default setting for compatibility reasons.

Chipset Features¶

CIA ROM Overlay - CIA/Gayle overlay emulation.
A1000 Boot RAM/ROM - This is enabled when 8/64K ROM is used in the A1000.
DF0: ID Hardware - No ID is used if DF0: is a 3.5" Double Density drive.
CD32 CD - Enable use of CD32 custom CD drive.
CD32 C2P - Enable use of CD32's Chunky to Planar graphics modes.
CD32 NVRAM - Enable use of CD32's Non-Volatile RAM for saving games etc.
CDTV CD - Enable use of the CDTV (Commodore Dynamic Total Vision) custom CD drive.
CDTV SRAM - Enable use of CDTV's Static RAM.
CDTV-CR - Enable CDTV Cost Reduced or Mk II version (CDTV based on A600 rather than A500)
A600/A1200 IDE - Enable use of the Amiga 600 or 1200 internal IDE port.
A4000/A4000T IDE - Enable use of the Amiga 4000 or 4000T internal IDE port(s).
PCMCIA - Enable use of PCMCIA port featured on the A600/A1200. Useful for external memory, storage and other uses.
ROM Mirror (E0) - 1 MB ROM image support.
ROM Mirror (A8) - 2 MB ROM image support.
Composite color burst Use analog video, composite video signal generated by a video-signal generator for color TV.
KB Reset Warning - Keyboard reset warning.
Z3 Autoconfig - Enable Zorro3 Autoconfiguration.
CIA 391078-01 - Enable Complex Interface Adapter 391078-01 chip which has a bug in IO port output mode, reading output mode port will always read output mode data state.
CIA TOD Bug Emulate the Complex Interface Adapter (CIA) Time of Day bug.
Custom register byte write bug - Enable a custom register byte write bug feature.
1MB Chip / 0.5M+0.5M Enable 1MB Chip RAM made of two 512KB chips.
KS ROM has Chip RAM speed Set speed of Kickstart ROM to Chip RAM speed.
Power up memory pattern Chip RAM and Slow RAM power up pattern emulation, enabled by default.
Toshiba Gary - Optional Toshiba Gary (Gate Array) slow (chip ram like) Z2 IO. Gary looks after bus control and functions for floppy drives.
Unmapped address space Set unmapped address space to Floating, all zeros or all ones.
CIA E-Clock Sync - Set to AutoSelect, 68000, Gayle or 68000 Alternate.

Internal SCSI Hardware¶

A3000 WD33C93 SCSI - Emulate the A3000 Western Digital 33C93 SCSI controller.
A4000T NCR53C710 SCSI - Emulate the A4000T NCR 53C710 SCSI controller.

Chipset Revision¶

Ramsey revision - Specify the specific version of the Ramsey chip (default is 0F). This is the gate array Dynamic-static RAM controller.
Fat Gary revision - Specify the specific version of the Fat Gary chip (default is 00). This is the gate array system address decoding chip.
Agnus/Alice model - Specify the specific version of the Agnus/Alice chip (default is 21). Memory: Auto, 512K, 1M, or 2M.
Denise/Lisa model - Specify the specific version of the Denise/Lisa chip (default is F). This is the graphics chip. Type: Auto, Velvet, A1000-No EHB, or A1000.
