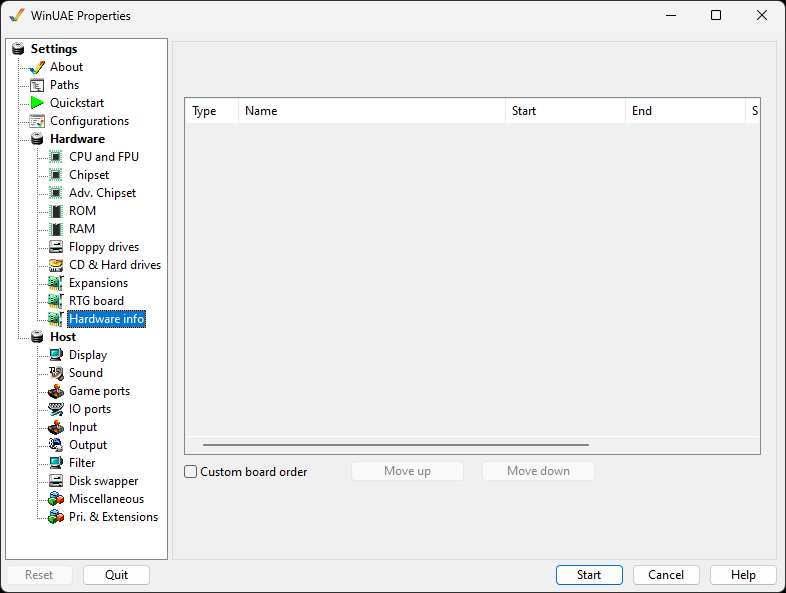

Hardware Info¶

A list of hardware attached to the emulator once the configuration is defined. For example, it will list disk interfaces (IDE or SCSI), ROMs used, RAM used, graphics cards, accelerator boards, and others.

Type is the interface type. Z2 = Zorro 2, Z3 = Zorro 3
Name name of the hardware
Start and End first and last memory address of the device
Size memory size used
ID ID number used by AutoConfig.

Custom board order changes the order of the devices.
Once enabled, selecting an entry and pressing Move up or Move down will change the items' position on the list.
